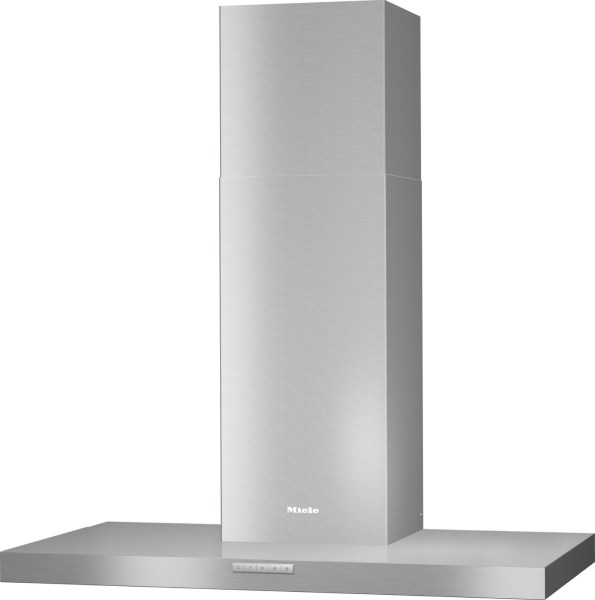

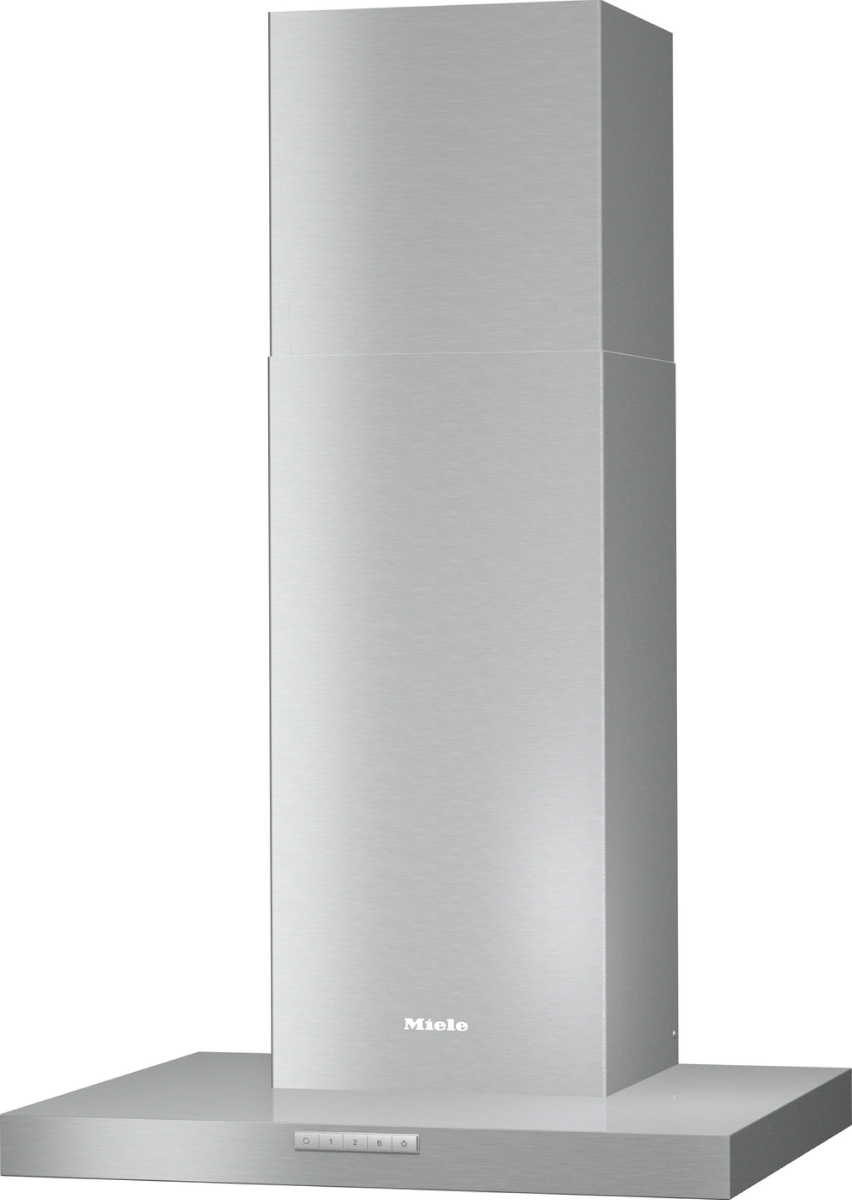

Miele wall type extractor DAW1620 Active stainless steel 60cm

749 €
In Stock
SKU: 12061600
Wall mounted cooker hood with EasySwitch pushbuttons for convenient operation Timeless design - 598 mm wide stainless steel cooker hood Powerful - 640 m3/h on the booster setting LED strip for uniform lighting Effective filtration – 10-ply aluminum metal grease filter Suitable for every home - for extraction or recirculation

More product information

10 years Warranty
Installation Cost

CHAT WITH US

WhatsApp Pilacouris Transparent Background 2Viber Pilakouris transparent background 2    icons8 facebook messenger 48

OR CALL +357 25 345 488

Installation Cost (carrying appliance via steps not included)
Due to Global Shipping Delays ask for availability and delivery timeframe before you order.

Highlights

ACTIVE FILTER

Active AirClean filter

A completely odour-free kitchen

Miele recirculation mode cooker hoods always require an Active AirClean filter in addition to the grease filter. This Miele filter removes odours efficiently and long-term.


Stainless steel grease filters (10-layer)

STAINLESS STEELAesthetically pleasing and highly functional
Miele cooker hoods are equipped with a 10-ply stainless-steel grease filter. The top layers and filter frame are made of high-quality stainless steel. "When you conveniently clean the grease filters in the dishwasher, no visible discolouring will occur," and the Miele grease filters keep their high-quality appearance for a long time.

Miele CleanCover

MIELE CLEAN COVERConvenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.


LED spotlights

LED SPOTLIGHTSPowerful lighting with minimum energy consumption
LED spotlights are an optical highlight and are environmentally friendly. A Miele LED spotlight consumes only 3 or 4.5 W and thus saves a lot of electricity. Miele LEDs illuminate the hob with a warm, natural and even light.

Perfect processing

PERFECT PROCESSINGVisible quality
Miele cooker hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele cooker hoods. Enjoy perfect workmanship!


Handcrafted in Germany

HANDCRAFTED IN GERMANYEach Miele cooker hood is unique.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.

Design flexibility

DESIGN FLEXIBILITYTimeless purism
Miele offers cooker hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele cooker hoods have characteristic accents without being intrusive. Clean lines, well thought-out functions and timeless design.


Specifications



Product data sheet

CONSTRUCTION TYPE
Wall mounted cooker hood
OPERATING MODES
Type of air guide Convertible
DESIGN
Colour Stainless steel
USER CONVENIENCE
Electronic controls
EFFICIENCY AND SUSTAINABILITY
Energy efficiency class (A+++ to D) A
Annual energy consumption in kWh/year 49.90
Fluid dynamic efficiency class A
Lighting efficiency class A
Grease filtering efficiency class B
FILTER SYSTEM
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
LIGHTING
Number x W 1 x 3,2 W
Light intensity in Lx 390 lx
Colour temperature in K 3500 Kelvin
BLOWER
Dual-action blower
AC motor
EXTRACTION
Air throughput in Level 1 (m³/h) according to EN 61591 250
Air throughput in Level 2 (m³/h) according to EN 61591 395
Air throughput in Booster level (m³/h) according to EN 61591 640
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 52.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 62.00
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 71.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 38.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 48.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 57.00
RECIRCULATION
Air throughput in Level 1 (m³/h) according to EN 61591 235
Air throughput in Level 2 (m³/h) according to EN 61591 390
Air throughput in Booster level (m³/h) according to EN 61591 620
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 53.00
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 64.00
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 74.00
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 39.00
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 50.00
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 60.00

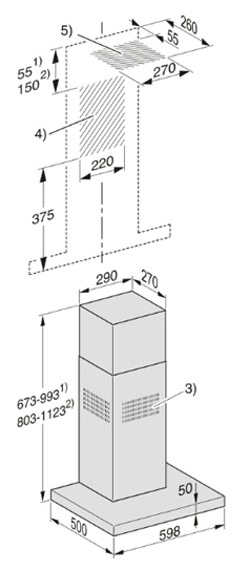

TECHNICAL DATA
  673–993
  803–1123
Overall height for vented and external in in. (mm) 673
Overall height for extraction mode and external mode cooker hoods in mm 993
Overall height for recirculation in in. (mm) 803
Overall height for recirculation mode cooker hoods in mm 1123
Canopy width in in. (mm) 598
Canopy height in in. (mm) 50
Depth of hood canopy in in. (mm) 500
Minimum height above electric hobs in mm 450
Net weight in kg 13.40
Length of supply lead in m 1.40
Standard plug fitted
Total rated load in kW 0.25
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
INSTALLATION NOTES
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm 150
Telescopic chimney





Downloads



DescriptionFormatDownload
Assembly plan pdf  Download
Operating instructions/Installation instructions pdf  Download
