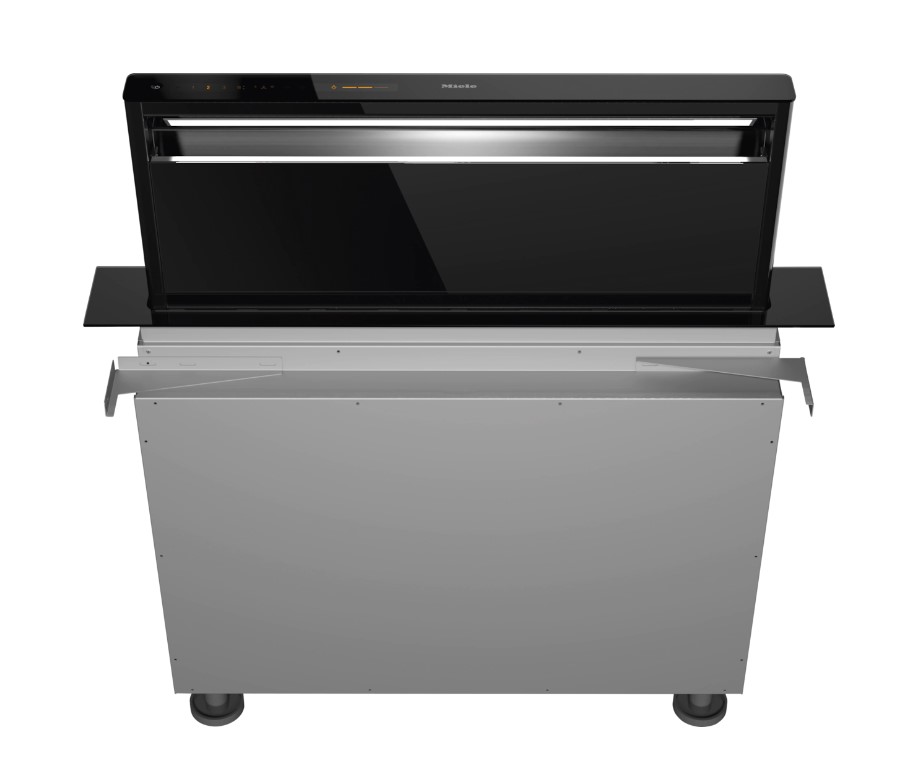

Miele downdraft extractor DAD4841 Black Levantar

2599 €
In Stock
SKU: 12428800
Downdraft extractor hood in an elegant matt black design and with intuitive SmartControl operation 916mm width - perfect combination with panorama hobs Easy installation in recirculation mode with a plug & play accessory set Motorized retractable canopy - Hood in Motion Unique ease of use - Con @ ctivity Efficient filtration - 10-layer stainless steel metal grease filter

More product information

Installation Cost

CHAT WITH US

WhatsApp Pilacouris Transparent Background 2Viber Pilakouris transparent background 2    icons8 facebook messenger 48

OR CALL +357 25 345 488

Installation Cost (carrying appliance via steps not included)
Due to Global Shipping Delays ask for availability and delivery timeframe before you order.

Highlights

ACTIVE FILTER

Active AirClean filter

A completely odour-free kitchen

Miele recirculation mode cooker hoods always require an Active AirClean filter in addition to the grease filter. This Miele filter removes odours efficiently and long-term.


Stainless steel grease filters (10-layer)

STAINLESS STEELAesthetically pleasing and highly functional
Miele cooker hoods are equipped with a 10-ply stainless-steel grease filter. The top layers and filter frame are made of high-quality stainless steel. "When you conveniently clean the grease filters in the dishwasher, no visible discolouring will occur," and the Miele grease filters keep their high-quality appearance for a long time.

Miele CleanCover

MIELE CLEAN COVERConvenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.


LED spotlights

LED SPOTLIGHTSPowerful lighting with minimum energy consumption
LED spotlights are an optical highlight and are environmentally friendly. A Miele LED spotlight consumes only 3 or 4.5 W and thus saves a lot of electricity. Miele LEDs illuminate the hob with a warm, natural and even light.

Perfect processing

PERFECT PROCESSINGVisible quality
Miele cooker hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele cooker hoods. Enjoy perfect workmanship!


Handcrafted in Germany

HANDCRAFTED IN GERMANYEach Miele cooker hood is unique.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.

Design flexibility

DESIGN FLEXIBILITYTimeless purism
Miele offers cooker hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele cooker hoods have characteristic accents without being intrusive. Clean lines, well thought-out functions and timeless design.


Specifications



Product data sheet

DESIGN
Downdraft extractor system
type of air flow Convertible
Required optional activated carbon filter DKF 30-R
DKF 30-P
DESIGN
Color Black
edge extraction
EASE OF USE
Networking with Miele@home>
Con@ctivity automatic function
Electronic control
SmartControl
Booster stage switch-off programmable
follow-up time 5/15 min.
Grease filter saturation indicator
Programmable grease filter saturation
Activated carbon filter saturation programmable
Hood in motion
EFFICIENCY AND SUSTAINABILITY
Energy efficiency class (A+++ - D) A
Annual energy consumption in kWh/year 41.60
Class for fluid dynamic efficiency A
lighting efficiency class A
Class for the degree of fat separation B
power management system
ECO package
CARE COMFORT
Easy-to-clean CleanCover hood interior
FILTER SYSTEM
number dishwasher-safe EDST metal grease filter (10 layers) 2
LIGHTING
LEDs
number x watts 1 x 11.2W
Illuminance in Lx 400
Color temperature in K 3500
light dimmer function
FAN
Double suction blower
ECO motor (DC motor)
EXHAUST AIR
Air performance booster level 2 (m³/h) 640
Sound power level 1 (dB(A) re1pW) according to EN 60704-3 44.00
Sound power level 2 (dB(A) re1pW) according to EN 60704-3 57.00
Sound power level 3 (dB(A) re1pW) according to EN 60704-3 62.00
Sound power booster level 1 (dB(A) re1pW) according to EN 60704-3 70.00
Sound power booster level 2 (dB(A) re1pW) according to EN 60704-3 72.00
Sound pressure level 1 (dB(A) re20µPa) according to EN 60704-2-13 30.00
Sound pressure level 2 (dB(A) re20µPa) according to EN 60704-2-13 43.00
Sound pressure level 3 (dB(A) re20µPa) according to EN 60704-2-13 49.00
Sound pressure booster level 1 (dB(A) re20µPa) according to EN 60704-2-13 56.00
Sound pressure booster level 2 (dB(A) re20µPa) according to EN 60704-2-13 58.00
CIRCULATING AIR
Air performance booster level 2 (m³/h) according to EN 61591 555
Sound power level 1 (dB(A) re1pW) according to EN 60704-3 50.00
Sound power level 2 (dB(A) re1pW) according to EN 60704-3 64.00
Sound power level 3 (dB(A) re1pW) according to EN 60704-3 69.00
Sound power booster level 1 (dB(A) re1pW) according to EN 60704-3 75.00
Sound power booster level 2 (dB(A) re1pW) according to EN 60704-3 76.00
Sound pressure level 1 (dB(A) re20µPa) according to EN 60704-2-13 37.00
Sound pressure level 2 (dB(A) re20µPa) according to EN 60704-2-13 50.00
Sound pressure level 3 (dB(A) re20µPa) according to EN 60704-2-13 56.00
Sound pressure booster level 1 (dB(A) re20µPa) according to EN 60704-2-13 61.00
Sound pressure booster level 2 (dB(A) re20µPa) according to EN 60704-2-13 62.00
SECURITY
safety shutdown
toughened safety glass (ESG)
TECHNICAL SPECIFICATIONS
safety plug
Total connected load in kW 0.25
Voltage in V 230
Fuse in A 10
frequency in Hz 50
number of phases 1
ASSEMBLY INSTRUCTIONS
Optimal combination with hob KM 7689 FL; KM 7684 FL
EAN
4002516761990
