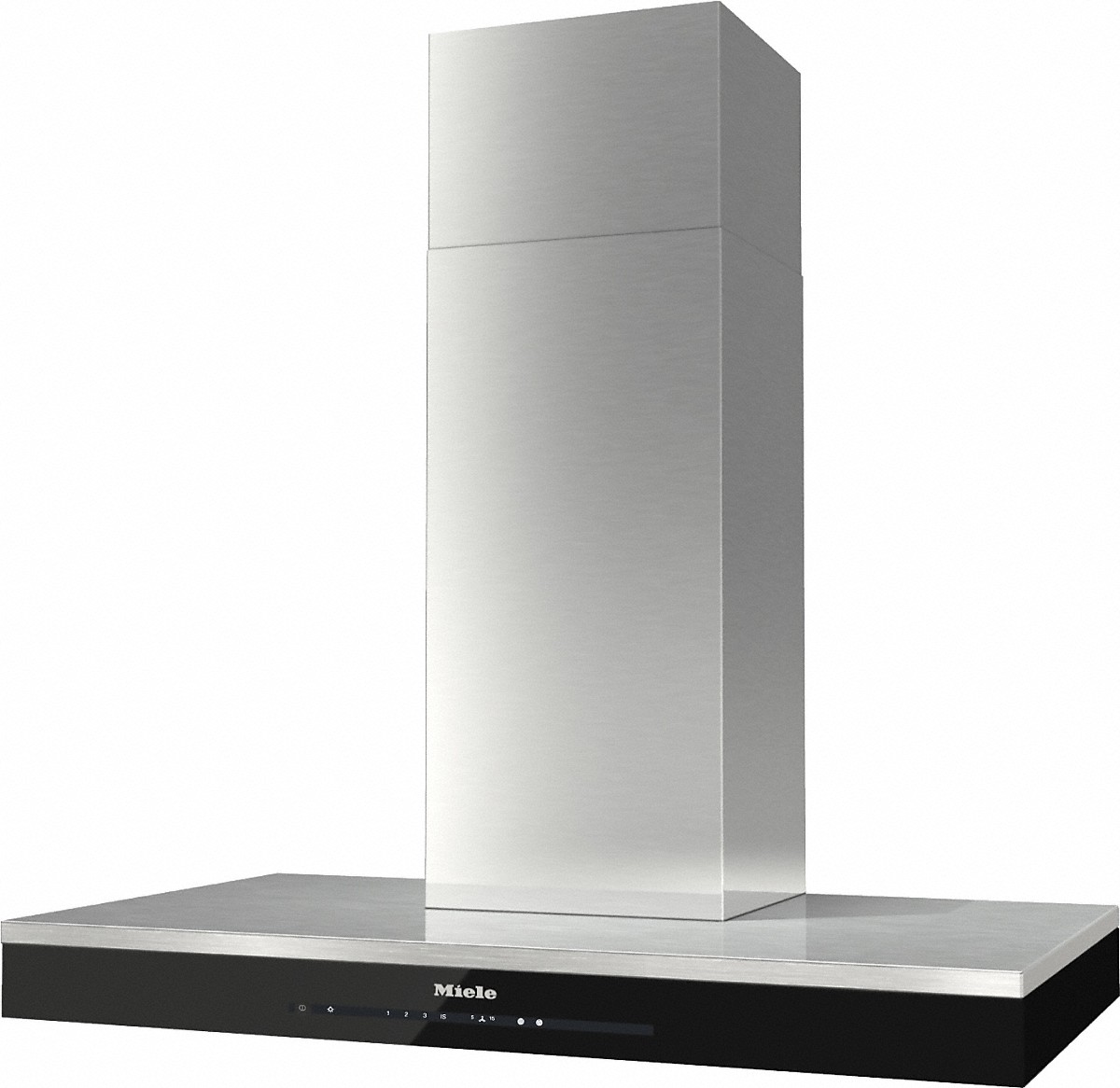

Miele wall type DA6698 W Puristic Edition 6000

2599 €
In Stock
SKU: 10749650
Wall mounted cooker hood with energy-efficient LED lighting and touch controls for simple operation. Family design - to match Generation 6000 built-in appliances Unique user convenience - Con@ctivity Powerful - 640m3/h on the booster setting Energy-efficient and quiet - powerful ECO motor Pleasantly quiet – Miele Silence package

More product information

Highlights

CONECTIVITY

Con@ctivity 2.0/3.0

A completely odour-free kitchen

Achieving optimum extraction of kitchen vapours and odours - while also saving energy: A Miele ventilation hood equipped with Con@ctivity 2.0 does this automatically. Miele Con@ctivity 2.0 enables the ventilation hood to communicate with the cooktop. Con@ctivity 2.0 gathers information from the cooktop and transmits it to the controls in the ventilaiton hood. Your Miele ventilation hood then uses this data to automatically select the correct fan setting to ensure the optimum room micro-climate at all times. So you can concentrate completely on the cooking process. You don't even have to remember to switch off the appliance. With the automatic run-on control, the ventilation hood will switch itself off automatically after you have finished cooking so you do not use any more energy than is necessary. In addition, manual operation is possible.


Stainless steel grease filters (10-layer)

STAINLESS STEELAesthetically pleasing and highly functional
Miele cooker hoods are equipped with a 10-ply stainless-steel grease filter. The top layers and filter frame are made of high-quality stainless steel. "When you conveniently clean the grease filters in the dishwasher, no visible discolouring will occur," and the Miele grease filters keep their high-quality appearance for a long time.

Miele CleanCover

MIELE CLEAN COVERConvenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.


LED spotlights

LED SPOTLIGHTSPowerful lighting with minimum energy consumption
LED spotlights are an optical highlight and are environmentally friendly. A Miele LED spotlight consumes only 3 or 4.5 W and thus saves a lot of electricity. Miele LEDs illuminate the hob with a warm, natural and even light.

Perfect processing

PERFECT PROCESSINGVisible quality
Miele cooker hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele cooker hoods. Enjoy perfect workmanship!


Handcrafted in Germany

HANDCRAFTED IN GERMANYEach Miele cooker hood is unique.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.

Silence

silencePerformance and convenience as standard
Efficient and very quiet. The motor, chimney and hood fan canopy are equipped with special insulation for effective sound-proofing. You can have a normal conversation even with high air throughput.


Specifications



Product details - DA 6698 W Puristic Edition 6000

Construction type
Wall ventilation hood
Design
Color
Stainless steel
RAL color possible as special order
Customization possible on request
Variable height available as special order
Operating modes
Recirculated mode
Convertible
OdorFree charcoal filter (order separately)
DKF12-1
Control panel
Electronic controls
Touch controls on glass
Power levels (number excl. Intensive)
3
Intensive setting
Programmable 'Intensive' switch-off
Delayed shutdown for 5 or 15 minutes
Programmable grease filter saturation indicator
Programmable charcoal filter saturation indicator
Acoustic package
Cleaning convenience
CleanCover
Networking of domestic appliances
Miele@home
WiFiConn@ct
Automatic function Con@ctivity 2.0 (Zigbee)
Filter system
Number of dishwasher-safe stainless-steel grease filters
3
Lighting
LED ClearView lighting
Light intensity in Lx
670
Color temperature in K
3,500
Light dimmer function
Blower
Dual-action blower
AC motor
Air throughput with max. duct diameter in vented mode (not for external version)
Air throughput
Values upon request
Safety
Safety shut-off
Single-ply safety glass (ESG)
Technical data
Overall hood height for vented and external in in.(mm)
28 (710)
-
40 5/8 (1,030)
Overall hood height for recirculation in in.(mm)
33 1/8 (840)
-
45 3/4 (1,160)
Canopy width in in.(mm)
35 3/8 (898)
Height of hood canopy in in.(mm)
3 3/8 (85)
Depth of hood canopy in in.(mm)
19 3/4 (500)
Minimum distance above electric cooktops in in.(mm)
24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
58 (26.0)
Length of electrical wire in ft (m)
2 (0.9)
Standard plug fitted
Total connected load in kW
0.36
Voltage in V
120
Fuse rating in A
15
Number of phases
1
Installation notes
Vent connection at top
Vent connection at top and rear
Diameter of vent connection in in.(mm)
6 (150)
Telescopic chimney
Telescopic wall bracket
Standard accessories
Non-return flap
Reducer from 150 to 125 mm Ø
Wireless stick Con@ctivity 2.0 for KM
XKS 3000 Z



Downloads



DescriptionFormatDownload
Fitting instructions pdf  Download
Operating instructions/Installation instructions pdf  Download
Assembly plan pdf  Download
