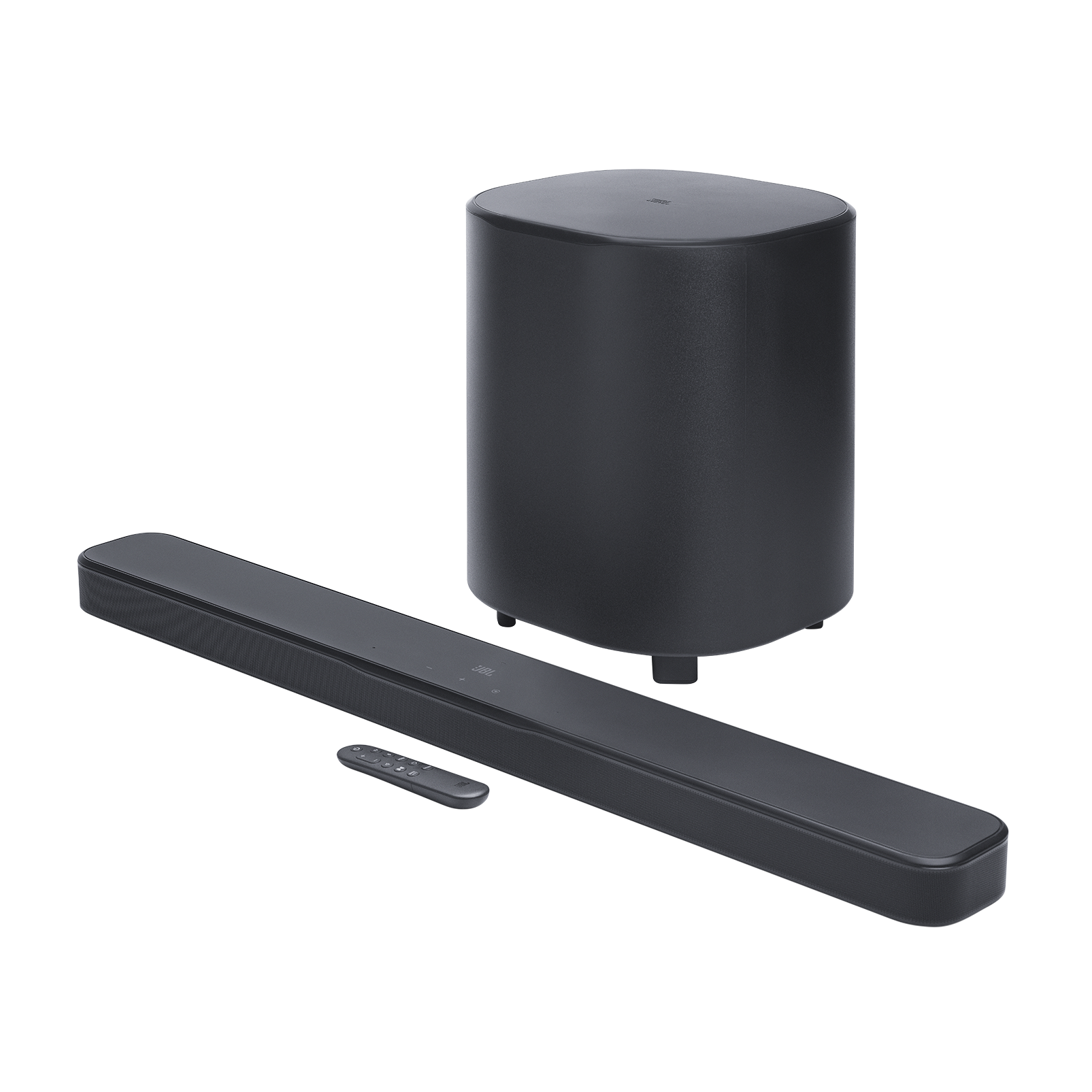

JBL Bar500MK2 5.1 Channel soundbar
CHAT WITH US
OR CALL : +357 25 345 488
Installation Cost (carrying appliance via steps not included)
Due to Global Shipping Delays ask for availability and delivery timeframe before you order.
Features
750W max output power and a 10" wireless subwoofer
Feel every on-screen crash, bang, and boom right in your chest. Your movies, music, and games become an even more immersive, theater-like sound experience with 750 watts of total system power, including big, thundering bass from the 10" wireless subwoofer.
Dolby Atmos® and DTS Virtual:X®
Hear a plane soar overhead. Feel a crowd swarming past you. Or get carried away by the energy of your go-to dance playlist. Hear extraordinary cinematic sound from all directions with the 3D audio experience of Dolby Atmos® and DTS Virtual:X®
MultiBeam™ 3.0
Wherever you're sitting, you'll be in the middle of the action. Our MultiBeam™ 3.0 delivers a wide, cinema-like soundstage that makes every high-speed chase or epic fight scene come alive. The sound beams perfectly fill your room, delivering truly immersive, lifelike, and realistic sound reproduction.
General Specifications
- Model
- BAR 500MK2 (soundbar unit) BAR 500MK2 SUB (subwoofer unit)
- Sound system
- 5.1 channel
- Power supply
- 100 - 240V AC, ~ 50/60Hz
- Total speaker power output* (Max. @THD 1%)
- 750W
- Soundbar output power** (Max. @THD 1%)
- 450W
- Subwoofer output power*** (Max. @THD 1%)
- 300W
- Soundbar transducer
- 5x (42x80)mm racetrack drivers, 4x 0.75" (20mm) tweeters
- Subwoofer transducer
- 10” (260mm)
- Networked standby power
- < 2.0 W
- Operating temperature
- 0°C - 45 °C
Audio Specifications
- Frequency response
- 40Hz - 20kHz (-6dB)
- Audio inputs
- Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
- Main soundbar dimensions (W x H x D)
- 940 x 50.5 x 104 mm / 37" x 2.0" x 4.1"
- Subwoofer dimensions (W x H x D)
- 325 x 400 x 325 mm / 12.8" x 15.7" x 12.8"
- Soundbar weight
- 2.9kg / 6.5lbs
- Subwoofer weight
- 8.1 kg / 17.8 lbs
- Packaging dimensions (W x H x D)
- 1020 x 395 x 490 mm / 40.2" x 15.6" x 19.3"
- Packaging Weight
- 18.0kg / 39.7lbs (EMEA/UK/AU/NZ) 15.9kg / 34.9lbs (Others)
- * RMS @THD 1%
* RMS @THD 1% 225W *** RMS @THD 1%
- 375W ** RMS @THD 1%

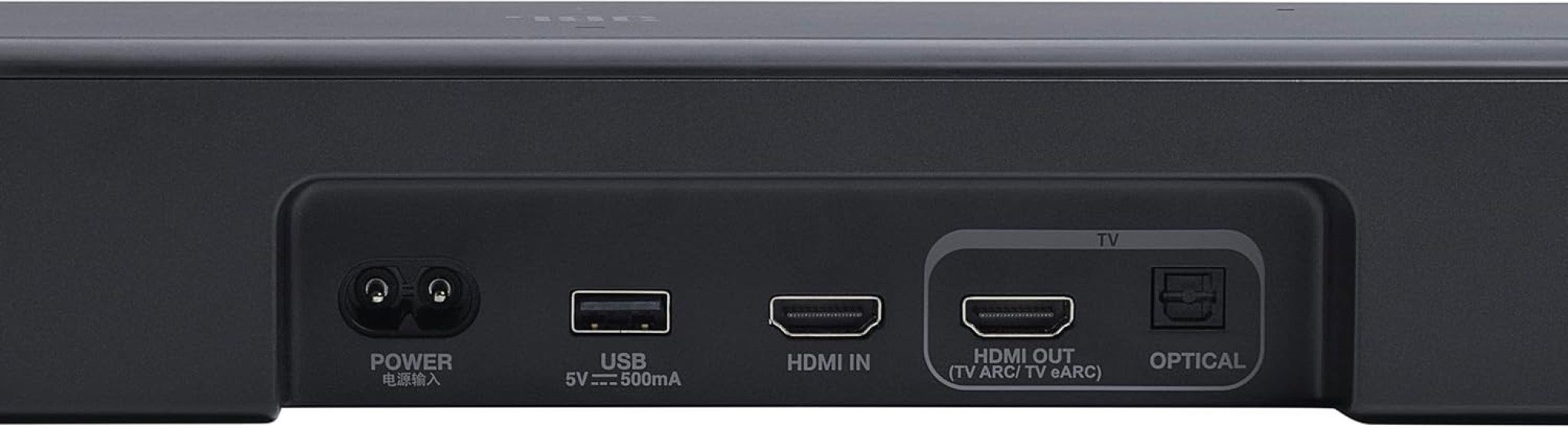

Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file formats
- mp3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 - 48 kHz
- MP3 bitrate
- 80 - 320 kbps
- Bluetooth version
- v5.3
- Bluetooth profile
- A2DP v1.3, AVRCP v1.5
- Bluetooth transmitter frequency range
- 2400 MHz – 2483.5 MHz
- Bluetooth transmitter power
- <15 dbm="" eirp="" dd="">
- Wi-Fi network
- IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power
- < 20 dBm (EIRP)
- 5G Wi-Fi transmitter frequency range
- 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
- 5G Wi-Fi transmitter power
- 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dbm eirp="" dd="">
- 2.4G wireless transmitter frequency range
- 2406 - 2474MHz
- 2.4G wireless transmitter power
- <10dbm eirp="" dd="">
- Note
- Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.
Video Specifications
- HDMI video input
- 1
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
- HDR pass through
- HDR10+, Dolby Vision
