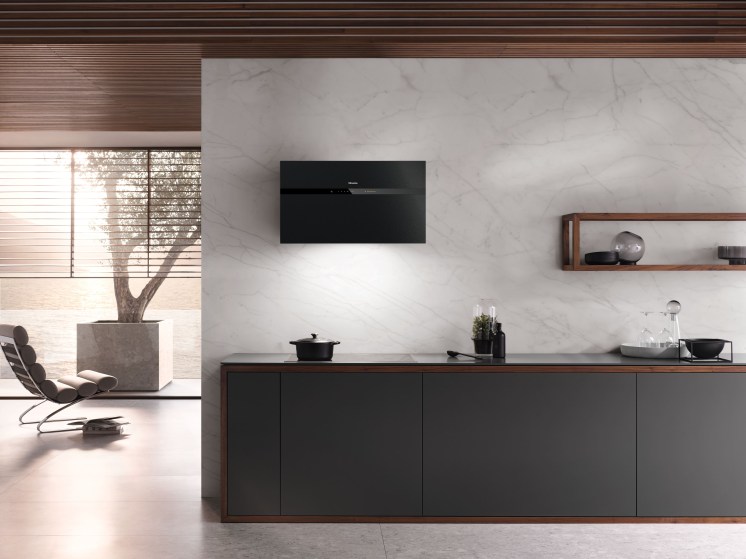

Miele Wall hood DA9299 W Screen Blackboard

1799 €
In Stock
SKU: 12506080
Wall-mounted extractor hood with glass blackboard on the front and smart SmartControl function Linear design with a width of 880 mm and a depth of only 256 mm Unique user comfort – Con@ctivity Opening front – for optimal extraction LED strip for uniform lighting Effective filtration - 10-layer stainless steel grease filter

More product information

Installation Cost

CHAT WITH US

WhatsApp Pilacouris Transparent Background 2Viber Pilakouris transparent background 2    icons8 facebook messenger 48

OR CALL +357 25 345 488

Installation Cost (carrying appliance via steps not included)
Due to Global Shipping Delays ask for availability and delivery timeframe before you order.

Highlights

ACTIVE FILTER

Active AirClean filter

A completely odour-free kitchen

Miele recirculation mode cooker hoods always require an Active AirClean filter in addition to the grease filter. This Miele filter removes odours efficiently and long-term.


Stainless steel grease filters (10-layer)

STAINLESS STEELAesthetically pleasing and highly functional
Miele cooker hoods are equipped with a 10-ply stainless-steel grease filter. The top layers and filter frame are made of high-quality stainless steel. "When you conveniently clean the grease filters in the dishwasher, no visible discolouring will occur," and the Miele grease filters keep their high-quality appearance for a long time.

Miele CleanCover

MIELE CLEAN COVERConvenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.


LED spotlights

LED SPOTLIGHTSPowerful lighting with minimum energy consumption
LED spotlights are an optical highlight and are environmentally friendly. A Miele LED spotlight consumes only 3 or 4.5 W and thus saves a lot of electricity. Miele LEDs illuminate the hob with a warm, natural and even light.

Perfect processing

PERFECT PROCESSINGVisible quality
Miele cooker hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele cooker hoods. Enjoy perfect workmanship!


Handcrafted in Germany

HANDCRAFTED IN GERMANYEach Miele cooker hood is unique.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.

Design flexibility

DESIGN FLEXIBILITYTimeless purism
Miele offers cooker hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele cooker hoods have characteristic accents without being intrusive. Clean lines, well thought-out functions and timeless design.


Specifications



DA 9298 W Screen blbo - Material No : 12506080 - EAN  4002516788676

Construction type
Wall-mounted extractor hood
Yes
Island-type hood
No
Slimline hood
No
Built-in extractor hood
No
Ceiling extractor fan
No
Under-counter built-in hood
No
Retractable hood
No
Countertop extractor system
No
RangeHood
No
Design
Color
Blackboard
RAL colors available for customization upon request
No
Customization available upon request
No
Adjustable height available for custom customization
No
Adjustable width available for custom customization
No
Multi-zone extraction from the ends
No
Extraction from the ends
No
Operating modes
Activated carbon filter (separate order)
Carbon filter DFK 29
Air duct type
Retrofit
External operation
No
User comfort
Touch switches on glass
No - No
SmartControl white
No
Ambient Fragrance
No
HumidityBalance
No
Miele@mobile app
No
Mechanical controls
No
Electronic controls
Yes
Sliding switch
No
Rotary switch
No
Joystick
No
Touch switches
Yes
ON/OFF switch
No
Power levels (number without Booster level)
3
Programmable Booster stage deactivation time
Yes
Extra time 5/15 min.
Yes
Extra time 15 min.
No
Grease filter saturation indicator
Yes
Programmable grease filter saturation indicator
Yes
Programmable activated carbon filter saturation indicator
Yes
Quiet operation package
Yes
Motorized extractor hoods
No
Easy cleaning of the inner dome – CleanCover
Yes
Honey@home
Yes
Automatic Con@ctivity mode
Yes
Ease of cleaning
Easy cleaning of the inner dome – CleanCover
Yes
Efficiency and sustainability
Energy efficiency class (A+++ to D)
A+++
Annual energy consumption in kWh/year
21.3
Hydrodynamic energy class
A
Lighting energy class
A
Grease filtration efficiency class
C
Power Management System
Yes
Filter system
Number of stainless steel dishwasher-safe grease filters (10x)
3
Lighting
Colored room lighting
No
Halogen
No
LED
Yes
Fluorescent lamps
No
Number x W
1 x 3,0 W
Illumination intensity in Lx
350 lx
Color temperature in K
3500 Kelvin
Dimming function
No
Perimeter lighting with variable color
No
White room lighting
No
Turbine
Single turbine
No
Double turbine
Yes
AC motor
No
DC motor
Yes
Export
Absorption capacity at booster level 2 (m³/h)
915
Sound power in Booster level 2 (dB(A) re 1 pW) according to EN 60704-3
70.0
Sound pressure level in Booster 2 (dB(A) re 20 μPa) according to EN 60704-2-13
56.0
Air flow at level 1 (m³/h) according to EN 61591
210
Air flow at level 2 (m³/h) according to EN 61591
300
Air flow at level 3 (m³/h) according to EN 61591
415
Absorption capacity in booster stage 1 (m³/h)
650
Sound power level 1 (dB(A) re 1 pW) according to EN 60704-3
38.0
Sound power level 2 (dB(A) re 1 pW) according to EN 60704-3
46.0
Sound power level 3 (dB(A) re 1 pW) according to EN 60704-3
53.0
Sound power in Booster level 1 (dB(A) re 1 pW) according to EN 60704-3
63.0
Sound pressure level 1 (dB(A) re 20 μPa) according to EN 60704-2-13
23.0
Sound pressure level 2 (dB(A) re 20 μPa) according to EN 60704-2-13
31.0
Sound pressure level 3 (dB(A) re 20 μPa) according to EN 60704-2-13
38.0
Sound pressure level in Booster 1 (dB(A) re 20 μPa) according to EN 60704-2-13
48.0
Safety
Security disable
Yes
Single safety glass (ESG)
Yes
Technical data
Total height of extractor hoods and outdoor hoods in mm
500
Total height of recirculation mode hoods in mm
500
Total height for ventilation and exterior in in. (mm)
500
Total height for recycling in in. (mm)
500
Dome width in in. (mm)
880
Dome height in in. (mm)
500
Hood dome depth in in. (mm)
260
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (up to 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
20.0
Power cable length in m
1.5
With common plug
Yes
Permanent electrical connection
No
Total connection power in kW
0.233
Voltage in V
230
Safety in A
10
Frequency in Hz
50
Number of phases
1
Notes on placement
Exhaust air connection at the top
Yes
Exhaust air duct connection on the side
No
Top and rear exhaust connection
Yes
Connection of exhaust air ducts at the top, rear and sides
No
Connecting exhaust air ducts top/rear/side/bottom
No
Exhaust air duct connection diameter in mm
150
Telescopic chimney
No
Fixing a "free" chimney
No
Mounting template
No
Supplied accessories
Perfume bottle
No
Activated carbon filter, reactivated
No
Dehumidification filter
No
Adapter for reducing the diameter of air ducts from 150 mm to 125 mm Ø
No
Adapter for reducing the diameter of air ducts from 150 mm to 120 mm Ø
No
Non-return valve
Yes
Recirculation diverter
Yes
Activated carbon filter
No
Remote control
No
Recirculation
Air flow in Booster level 2 (m³/h) according to EN 61591
715
Sound power in Booster level 2 (dB(A) re 1 pW) according to EN 60704-3
71.0
Sound pressure level in Booster 2 (dB(A) re 20 μPa) according to EN 60704-2-13
57.0
Air flow at level 1 (m³/h) according to EN 61591
175
Air flow at level 2 (m³/h) according to EN 61591
270
Air flow at level 3 (m³/h) according to EN 61591
420
Air flow in Booster stage 1 (m³/h) according to EN 61591
620
Sound power level 1 (dB(A) re 1 pW) according to EN 60704-3
40.0
Sound power level 2 (dB(A) re 1 pW) according to EN 60704-3
49.0
Sound power level 3 (dB(A) re 1 pW) according to EN 60704-3
59.0
Sound power in Booster level 1 (dB(A) re 1 pW) according to EN 60704-3
68.0
Sound pressure level 1 (dB(A) re 20 μPa) according to EN 60704-2-13
26.0
Sound pressure level 2 (dB(A) re 20 μPa) according to EN 60704-2-13
34.0
Sound pressure level 3 (dB(A) re 20 μPa) according to EN 60704-2-13
44.0
Sound pressure level in Booster 1 (dB(A) re 20 μPa) according to EN 60704-2-13
54.0



Downloads



Instructions for use/Installation instructions

Image Measurements (Image)

Manual (PDF)

Guarantee booklet (Pdf)

Installation plans

Instalation Drawings (Image)
