Novy Ceiling unit Novy Pureline 6830
1625,00 €
1459 €
In Stock
Maximum efficiency but extremely quiet
LED lighting warm white (2700K) adjustable to neutral white (4000K)
Integrated dimmable LED lighting
Flexible installation thanks to Cubic motor which can be rotated in all directions and with optional kit for remote indoor installation
CHAT WITH US
OR CALL : +357 25 345 488
Installation Cost (carrying appliance via steps not included)
Due to Global Shipping Delays ask for availability and delivery timeframe before you order.
Specifications
Energy label
Energy Efficiency class (EEIhood)
A+
Annual Energy Consumption (kWh/year) (AEChood)
33,9
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
A
Grease Filtering Efficiency class (GFEhood)
D
Functions and features
Control method
Push buttons / Remote control
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Integrated & Remote
Sound absorber
Integrated
Recirculation
Optional
InTouch function
Standard
Auto stop
Yes
Delayed switch off (minutes)
10/30
Number of grease filters
2
Grease filter
6830020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Lighting
Functional lighting type
LED
Ambient lighting type
Not Applicable
Functional light dimmable
Yes
Soft-ON/OFF
Yes
Number of functional lights
4
Total energy consumption functional light (W)
8
Color functional light (K)
2700/4000
Color ambient light (K)
Not Applicable
External light connector
Not Applicable

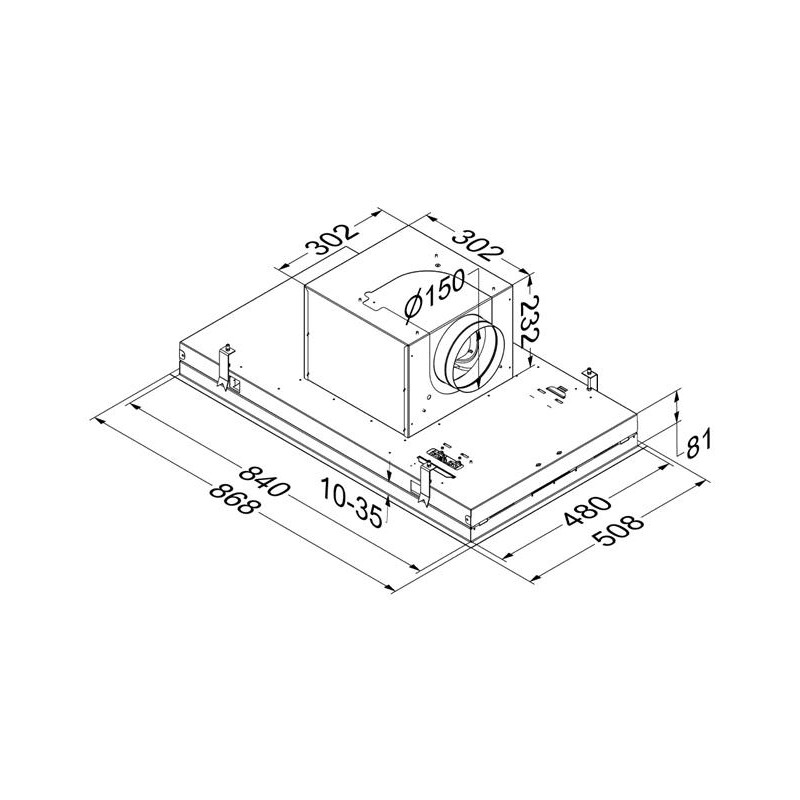

Dimensions
Product dimensions (WxDxH) (mm)
868 x 508 x 319
Height incl. mounting clamps (without motorbox) (mm)
133
Width flange (mm)
15
Dimensions cut-out opening (WxD) (mm)
845 x 485
Advised mounting height induction hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 1600
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 1600
Diameter outlet (mm)
150
Position exhaust
Top / Right / Left / Front / Back
Airflow and noise level
Airflow duct out speed 1 (m³/h)
234
Airflow duct out speed 2 (m³/h)
416
Airflow duct out speed 3 (m³/h)
549
Airflow duct out max powerspeed (m³/h) (Qboost)
634
Sound pressure duct out speed 1 (dB(A))
22
Sound pressure duct out speed 2 (dB(A))
35
Sound pressure duct out speed 3 (dB(A))
42
Sound pressure duct out at max powerspeed (dB(A))
46
Technical specifications
Maximum power (W)
117
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1,2
Power consumption in stand-by-mode (Ps) (W)
0.25
Net weight (kg)
21,5
Novy Connect
Not applicable
