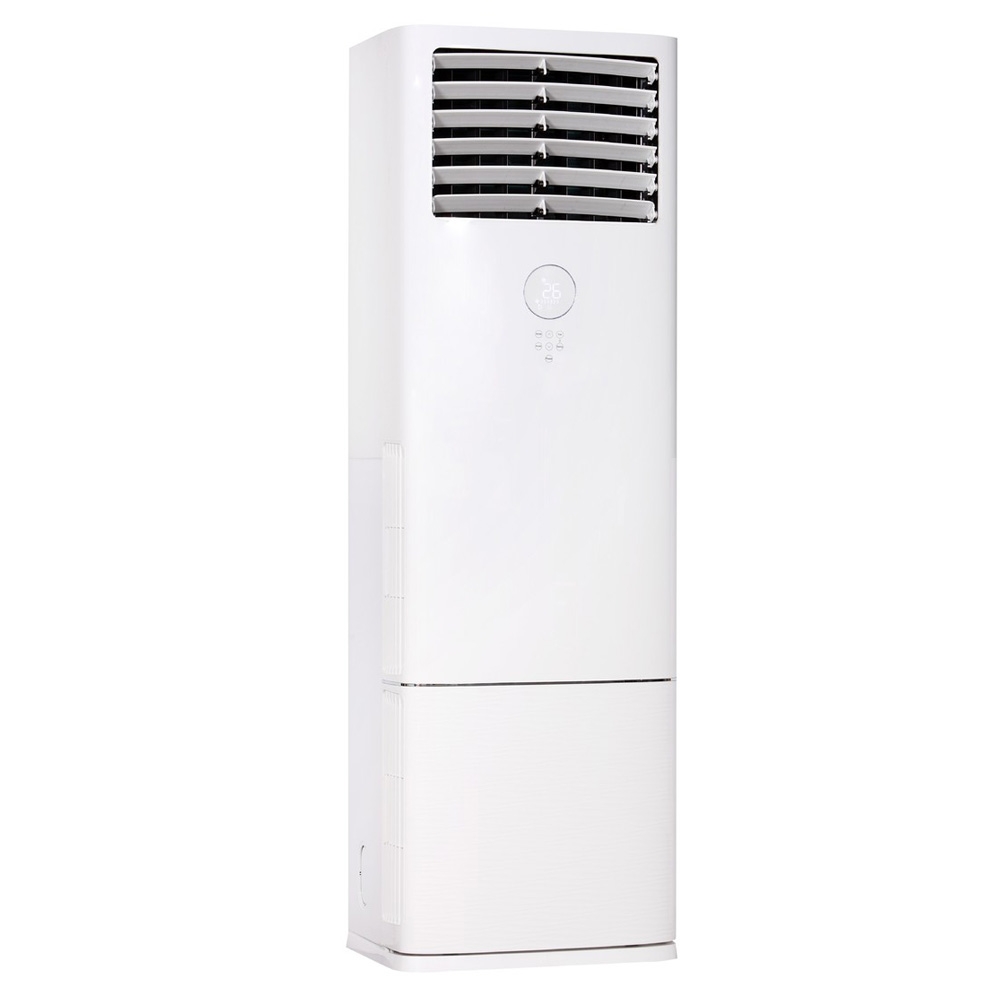

Midea MFGD-48HRFN8-QRD0 three-phase inverter floor standing air conditioner
MIDEA MFGD-48HRFN8-QRD0 THREE-PHASE INVERTER FLOOR STANDING AIR CONDITIONER
We are introducing Midea MFGD-48HRFN8-QRD0 three-phase inverter floor standing air conditioner! It comes with a high energy efficiency of cooling/heating - A++ / A+, features like 24-hour timer, auto restart, Refrigerant Leakage Detect and many more features and modes.
Midea MFGD-48HRFN8-QRD0 three-phase inverter floor standing air conditioner is an excellent solution for air conditioning large rooms such as restaurants, cinemas, theatres, etc. a new elegant design makes it suitable for interiors of a different design.
FEATURES AND EXTRAS OF THE MIDEA MFGD-48HRFN8-QRD0 INVERTER FLOOR STANDING AIR CONDITIONER
Breeze Away
At the touch of a button, the airflow direction is automatically adjusted to the maximum angle to prevent direct airflow.
24-hour timer
Ability to set a 24-hour timer to turn the air conditioning system on and off within 24 hours.
Automatic restart
In the event that the air conditioner stops working unexpectedly due to a power outage, it will restart automatically as soon as power is restored and will start operating in the mode set before the power was turned off.
Anti-Cold Air
The fan speed in the indoor unit of the air conditioner is adjusted automatically depending on the temperature of the evaporator when heating the room. This prevents cold air from blowing when the air conditioner is started in heating mode.
Low ambient temperature kit
The outdoor unit of the air conditioner can work in heating mode without problems at very low outdoor temperatures.
Refrigerant leak detection
The indoor unit of the air conditioner detects an error code "EC", which will be displayed and will stop working automatically when a freon leak is detected. This will protect the air conditioning compressor from damage caused by high temperatures when the refrigerant leaks.
3D Airflow
The louvers of the indoor unit of the air conditioner move automatically in all directions, ensuring even distribution of the air-conditioned air in all corners of the room.
Golden Fin heat exchanger coating
The Golden Fin coating is more resistant to oxidation and corrosion than ordinary Blue Fin coating. Golden Fin effectively prevents the growth and spread of bacteria and improves resistance to corrosive elements.
Follow Me
The remote control has a built-in temperature sensor that automatically regulates the operating temperature depending on the measured temperature in the area in which it is located.
LED display
The indoor unit has a large LED display giving information about the operation of the air conditioning system.
TECHNICAL SPECIFICATIONS FOR MIDEA MFGD-48HRFN8 INVERTER FLOOR STANDING AIR CONDITIONER
| Model | Indoor Unit | MFGD-48HRFN8-QRD0 | |
|---|---|---|---|
| Outdoor Unit | MOE3OU-48HFN8-RRD0 | ||
| Power Source | V/O/Hz | 380 - 415 / 3 / 50 | |
| Capacity | Cooling | kW | 14.06 (4.95 - 15.45) |
| Heating | 16.11 (4.39 - 18.48) | ||
| Input Power | Cooling / Heating | kW | 4.95 (1.15 - 5.90) / 5.20 (1.02 - 6.20) |
| PDesign | Cooling | kW | 14.6 |
| Heating (-7°C) | 10.9 | ||
| Heating (2°C) | 11.8 | ||
| SEER | Cooling | W/W | 6.10 |
| SCOP (-7°C) | Heating | 4.00 | |
| SCOP (2°C) | Heating | 5.10 | |
| Efficiency | Cooling | A++ | |
| Heating (-7°C) | A+ | ||
| Heating (2°C) | A+++ | ||
| Running Current | Cooling / Heating | A | 8.00 (1.77 - 9.97) / 8.50 (1.6 - 10.54) |
| Air Flow (indoor unit) | m3/h | 2413 / 2222 / 2027 | |
| Sound pressure level (indoor unit) | dB(A) | 55 / 53 / 51.5 | |
| Sound power level (indoor unit) | dB(A) | 66 | |
| Air Flow (outdoor unit) | m3/h | 7500 | |
| Sound pressure level (outdoor unit) | dB(A) | 65 | |
| Sound power level (outdoor unit) | dB(A) | 70 | |
| Dimension (H x W x D) Weight |
Indoor | mm | 1935 x 629 x 456 |
| kg | 58.4 | ||
| Outdoor | mm | 1333 x 952 x 415 | |
| kg | 106.7 | ||
| Refrigerant piping (Liquid / Gas) | mm | 9.52 / 15.9 | |
| Max. refrigerant pipe length | m | 65 | |
| Max. difference in level | 30 | ||
| Operation temperature | Cooling | °C | -15 ~ 50 |
| Heating | -15 ~ 24 | ||
| Refrigerant | R32 | ||
